Set Up OAuth Integration

Instead of including a bunch of integrations, we give you the tools to build them by simplifying the difficult parts of building sustainable automation, including OAuth. In this section, you’ll setup a Microsoft Graph application as an OAuth provider and see how to use it in your automation.

What You’ll Build

An OAuth connection to Microsoft Graph for reading user information.

Prerequisites

• Installation complete
• Administrator permissions to Entra ID
• Administrator permissions in Bifrost

Create Azure AD App Registration

1. Go to Entra ID → App registrations

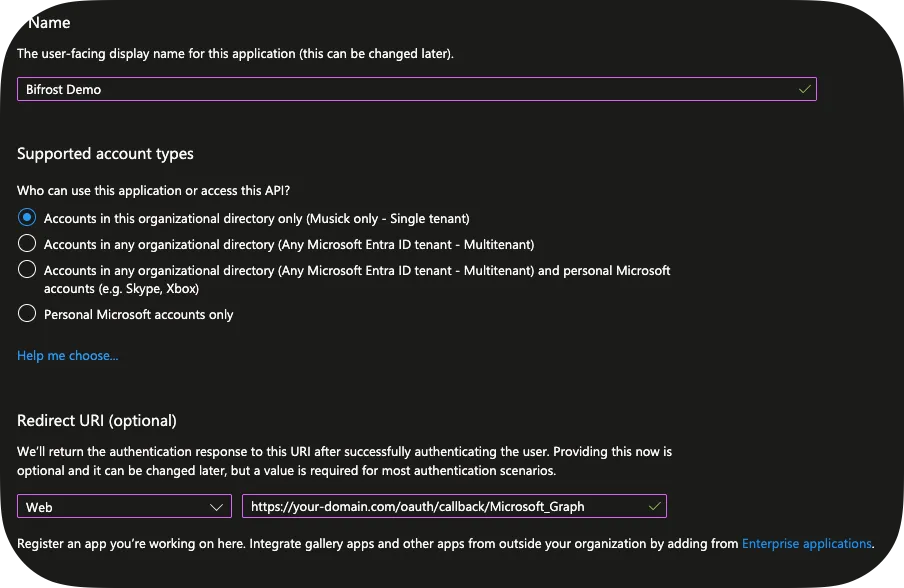

2. Click + New registration:

   • Name: “Bifrost Demo”
   • Supported account type: Single Tenant
   • Redirect URI: https://your-domain.com/oauth/callback/Microsoft_Graph

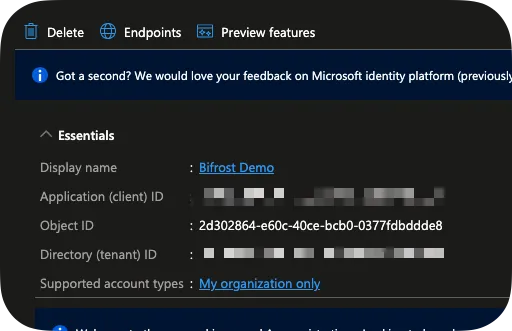

3. Copy Application (client) ID and Tenant ID

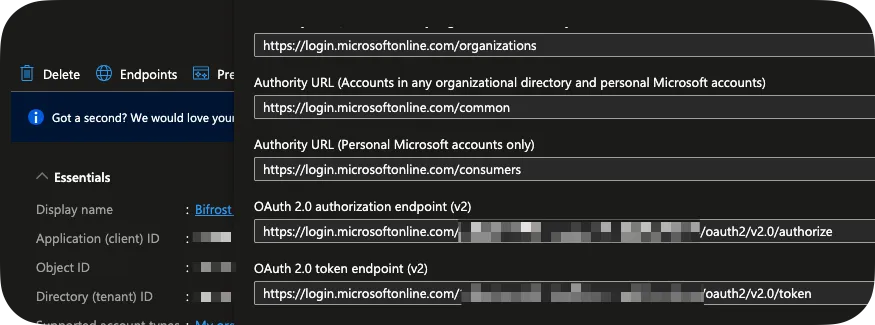

4. Click Endpoints and copy your OAuth 2.0 authorization endpoint (v2) and OAuth 2.0 token endpoint (v2).

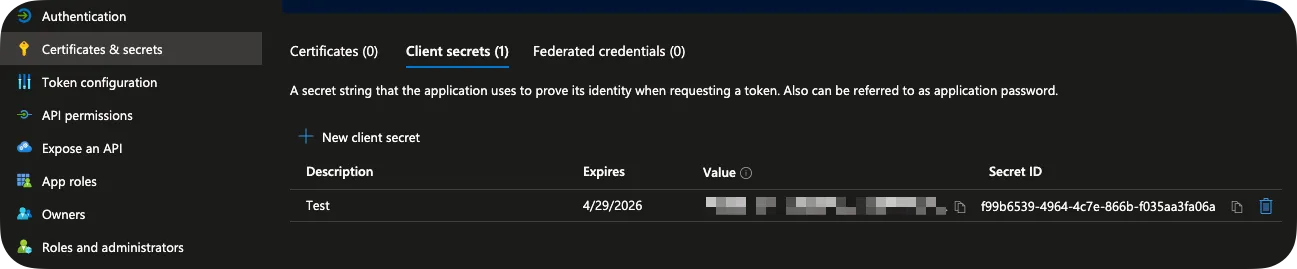

5. Go to Certificates & secrets → + New client secret:

   • Set expiration to 6 months
   • Copy secret value immediately



6. Go to API permissions:

   • Click + Add permission → Microsoft Graph → Delegated
   • Add Directory.Read.All
   • Click Grant admin consent

Caution

Save your Client ID, Client Secret, and Tenant ID - you’ll need them next.

Create OAuth Connection in Bifrost

1. Navigate to Settings → Integrations → OAuth Connections

2. Click + Add Connection

3. Fill in details:

   • Connection Name: Microsoft_Graph
   • Description: My Microsoft Graph connection

4. Click Create

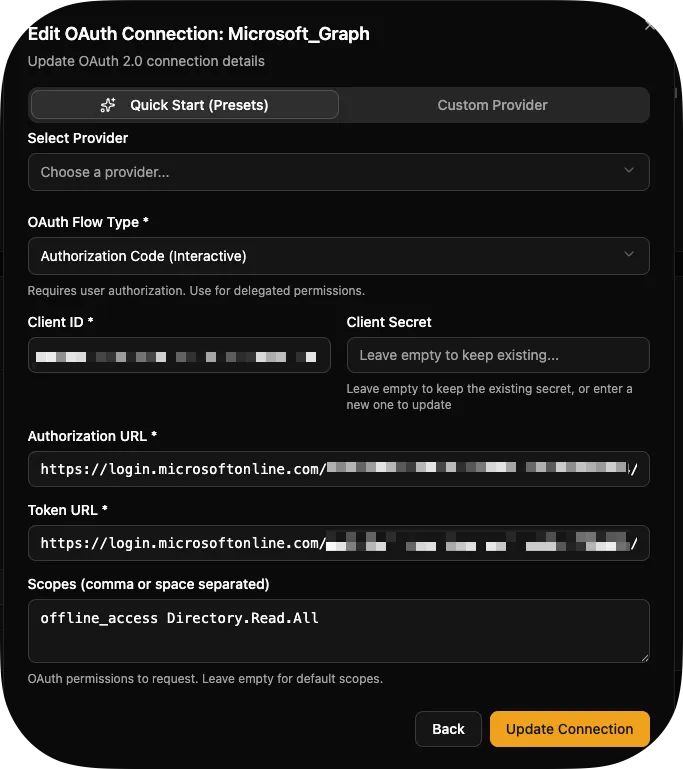

5. On Custom Provider, fill in the following:

   • OAuth Flow Type: Authorization Code (Interactive)

   • Client ID: The Client ID you copied earlier

   • Client Secret: The Client Secret you copied earlier

   • Authorization URL: The OAuth 2.0 authorization endpoint (v2) you copied earlier

   • Token URL: The OAuth 2.0 token endpoint (v2) you copied earlier

   • Scope: offline_access Directory.Read.All

     Tip

     offline_access is usually what tells a provider you want a refresh_token, which allows you to maintain continuous access to a service until that access is revoked. You normally want this when setting up an OAuth connection in a platform like Bifrost.



Authorize the Connection

1. Click Connect on your application

2. Sign in with Microsoft and consent to permissions

3. You’ll be redirected back to Bifrost

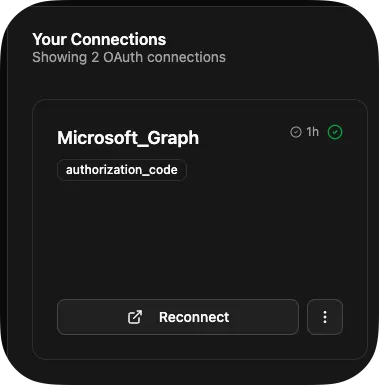

4. Connection status changes to Active



Use OAuth in Workflow

1. In the Code Editor, create a new workflow called list_users.py

   from bifrost import workflow, param, oauth, ExecutionContext
   import requests
   import logging
   import json

   logger = logging.getLogger(__name__)

   @workflow(
       name="list_users",
       description="List users from Microsoft Graph"
   )
   async def list_users(context: ExecutionContext):
       """Fetch user information from Microsoft Graph."""

       # Get OAuth credentials
       oauth_response = await oauth.get_token("Microsoft_Graph")

       logger.info("Retrieved oauth response")
       url = "https://graph.microsoft.com/v1.0/users"
       headers = {
           "Authorization": f"Bearer {oauth_response['access_token']}"
       }

       response = requests.get(url, headers=headers)
       response.raise_for_status()
       users = response.json()['value']

       return users

2. Use CTRL/CMD + S to save.

3. On the Workflows screen, click Execute Workflow on your list_users workflow.

Token Refresh

Bifrost automatically refreshes expired tokens provided your connection returned a refresh token. It’ll tell you if it doesn’t. If the connection is unable to refresh for some reason — such as the password on the account you used to authenticate becoming invalid — you’ll see the error on the OAUTH Connections screen.

Multiple Organizations

OAuth connections are organization-scoped:

• Each org can have its own microsoft-graph connection

• Workflows automatically use the executing org’s credentials or fall back on the global connection, but you can specify something else if you want like this:

  await oauth.get_token("Microsoft_Graph", 'some-other-org-id')

• No code changes needed for multi-tenancy!
