Cascading Dropdowns

Cascading dropdowns let users select from filtered options based on previous selections. For example: Department → Manager, or Country → State → City.

What You’ll Build

A form where selecting a department dynamically populates a managers dropdown with only managers from that department.

Prerequisites

• Form with linked workflow
• Basic understanding of data providers

Create the Data Providers

Step 1: Create department provider (workspace/data_providers/departments.py):

from bifrost import data_provider, ExecutionContext

@data_provider(
    name="get_departments",
    description="List all departments",
    cache_ttl_seconds=3600  # Cache 1 hour
)
async def get_departments(context: ExecutionContext):
    return [
        {"label": "Engineering", "value": "eng"},
        {"label": "Sales", "value": "sales"},
        {"label": "Support", "value": "support"}
    ]

Step 2: Create managers provider with department parameter:

from bifrost import data_provider, param, ExecutionContext

@data_provider(name="get_managers_by_dept")
@param("department", type="string", required=True)
async def get_managers_by_dept(context: ExecutionContext, department: str):
    # Fetch managers filtered by department
    managers = await db.query(
        "SELECT id, name FROM users WHERE department = ? AND is_manager = true",
        department
    )

    return [
        {"label": mgr["name"], "value": mgr["id"]}
        for mgr in managers
    ]

Note

The @param decorator on the data provider enables parameterization. The managers list will update when the department field changes.

Configure the Workflow

Add both parameters to your workflow:

from bifrost import workflow, param, ExecutionContext

@workflow(name="assign_to_manager")
@param("department", type="string", data_provider="get_departments")
@param("manager", type="string", data_provider="get_managers_by_dept")
async def assign_to_manager(
    context: ExecutionContext,
    department: str,
    manager: str
):
    # Assign work to selected manager
    return {
        "department": department,
        "manager_id": manager,
        "assigned": True
    }

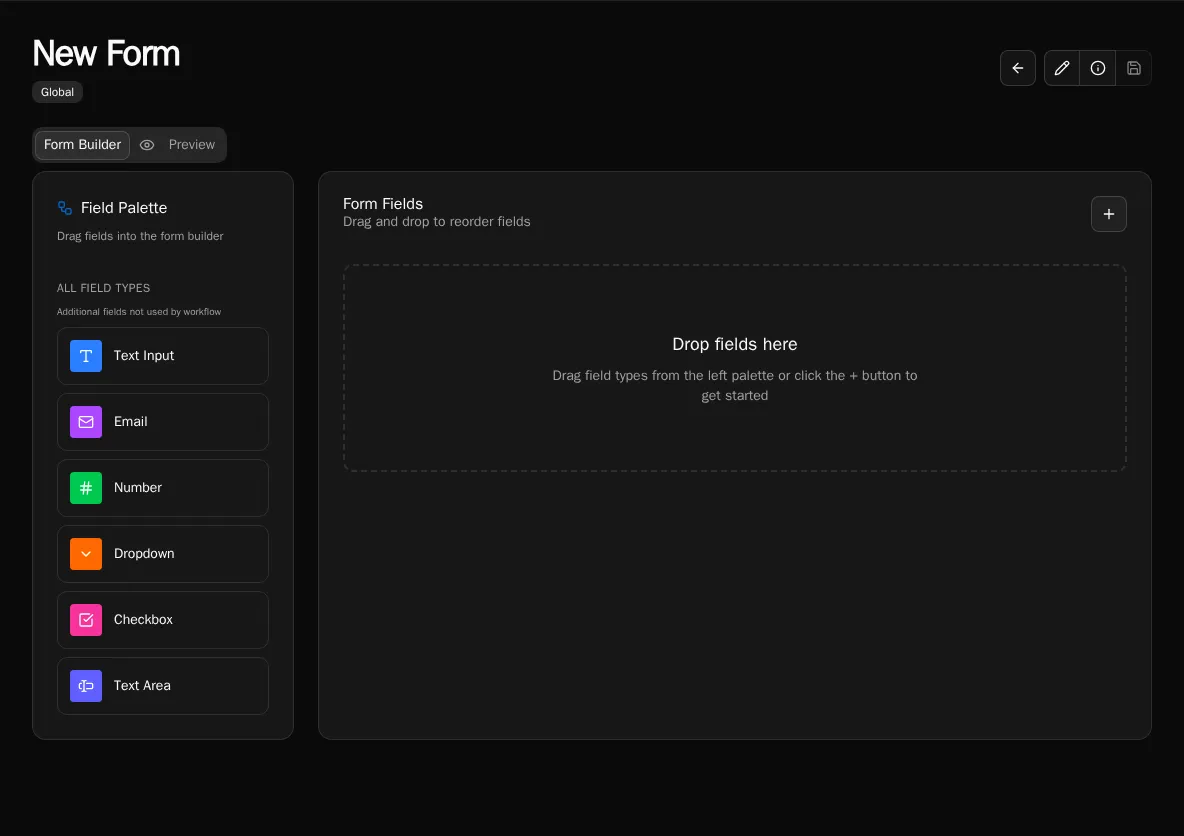

Configure Form Fields

1. In form builder, drag the department field to canvas

   • Auto-configured with get_departments provider

2. Drag the manager field to canvas

   • Click to edit field
   • Under Data Provider, select get_managers_by_dept

3. Configure Data Provider Inputs:

   • Click Data Provider Inputs
   • For department parameter:
     • Mode: Field Reference
     • Field Name: department

Tip

Field Reference mode passes the selected department value to the managers data provider automatically.

Test It

1. Save the form
2. Click Launch
3. Select a department
4. Watch the managers dropdown populate with filtered results
5. Select a manager and submit

Advanced Patterns

Three-Level Cascade (Country → State → City)

@data_provider(name="get_countries")
async def get_countries(context):
    return [
        {"label": "United States", "value": "us"},
        {"label": "Canada", "value": "ca"}
    ]

@data_provider(name="get_states")
@param("country", type="string", required=True)
async def get_states(context, country: str):
    states = await db.query(
        "SELECT * FROM states WHERE country_code = ?",
        country
    )
    return [{"label": s.name, "value": s.code} for s in states]

@data_provider(name="get_cities")
@param("state", type="string", required=True)
async def get_cities(context, state: str):
    cities = await db.query(
        "SELECT * FROM cities WHERE state_code = ?",
        state
    )
    return [{"label": c.name, "value": c.id} for c in cities]

Configure in workflow:

@param("country", type="string", data_provider="get_countries")
@param("state", type="string", data_provider="get_states")
@param("city", type="string", data_provider="get_cities")

In form, configure Data Provider Inputs:

• state field → country parameter → Field Reference: country
• city field → state parameter → Field Reference: state

Multiple Parameters

Pass multiple field values to a provider:

@data_provider(name="get_filtered_products")
@param("category", type="string", required=True)
@param("price_range", type="string", required=True)
async def get_filtered_products(context, category: str, price_range: str):
    products = await db.query(
        "SELECT * FROM products WHERE category = ? AND price_range = ?",
        category, price_range
    )
    return [{"label": p.name, "value": p.id} for p in products]

In form Data Provider Inputs:

• category parameter → Field Reference: category
• price_range parameter → Field Reference: price_range

Static + Field Reference

Mix static values with field references:

@data_provider(name="get_regional_managers")
@param("department", type="string", required=True)
@param("region", type="string", required=True)
async def get_regional_managers(context, department: str, region: str):
    # region comes from static value, department from form field
    return await fetch_managers(department, region)

In form Data Provider Inputs:

• department parameter → Field Reference: department
• region parameter → Static: "west_coast"

Expression Mode

Use JavaScript expressions for computed values:

In form Data Provider Inputs:

• Mode: Expression
• Value: context.field.country + '_' + context.field.state

Common Patterns

Organization-Scoped Cascading

Filter all levels by organization:

@data_provider(name="get_org_departments")
async def get_org_departments(context):
    return await db.query(
        "SELECT * FROM departments WHERE org_id = ?",
        context.org_id
    )

@data_provider(name="get_org_managers")
@param("department", type="string", required=True)
async def get_org_managers(context, department: str):
    return await db.query(
        "SELECT * FROM users WHERE org_id = ? AND department = ? AND is_manager = true",
        context.org_id, department
    )

Empty State Handling

Show helpful message when no options available:

@data_provider(name="get_managers_by_dept")
@param("department", type="string", required=True)
async def get_managers_by_dept(context, department: str):
    managers = await db.query(
        "SELECT * FROM users WHERE department = ? AND is_manager = true",
        department
    )

    if not managers:
        return [{"label": "No managers in this department", "value": "", "disabled": True}]

    return [{"label": m.name, "value": m.id} for m in managers]

Troubleshooting

Dropdown not updating: Verify Data Provider Inputs configuration. Field Name must exactly match the source field name.

Empty dropdown: Check provider returns correct format with label and value. Test provider independently.

Slow updates: Increase cache TTL on parent provider. Use shorter TTL on dependent provider for freshness.

Best Practices

• Cache parent providers: Long TTL on rarely-changing data (departments, countries)
• Short cache on dependent providers: Balance freshness with performance
• Limit results: Return max ~100 options per dropdown
• Show loading states: Dependent providers may take time to fetch
• Test edge cases: What if parent selection is cleared?
