Set Up OAuth Integration

Set up a Microsoft Graph integration with OAuth to access user data. This example shows the full pattern for any OAuth-based API.

What You’ll Build

An integration with Microsoft Graph that reads user information using OAuth.

Prerequisites

• Installation complete
• Administrator permissions to Entra ID

Create Entra ID App Registration

1. Go to Entra ID → App registrations

2. Click + New registration:

   • Name: “Bifrost Demo”
   • Supported account type: Single Tenant
   • Redirect URI: https://your-domain.com/oauth/callback/Microsoft_Graph

   Please note that you’ll change the Redirect URI later as Bifrost will get you the real redirect URL.



3. Copy Application (client) ID and Tenant ID



4. Click Endpoints and copy your OAuth 2.0 authorization endpoint (v2) and OAuth 2.0 token endpoint (v2).



5. Go to Certificates & secrets → + New client secret:

   • Set expiration to 6 months
   • Copy secret value immediately



6. Go to API permissions:

   • Click + Add permission → Microsoft Graph → Delegated
   • Add Directory.Read.All
   • Click Grant admin consent

Caution

Save your Client ID, Client Secret, and Tenant ID - you’ll need them next.

Create Integration in Bifrost

1. Navigate to Settings → Integrations

2. Click Create Integration

3. Fill in details:

   • Organization: Global, or scoped to a specific organization
   • Name: Microsoft_Graph
   • Description: Microsoft Graph API connection

   You can skip Entity Data Provider for now. For Default Entity ID, you can use common.

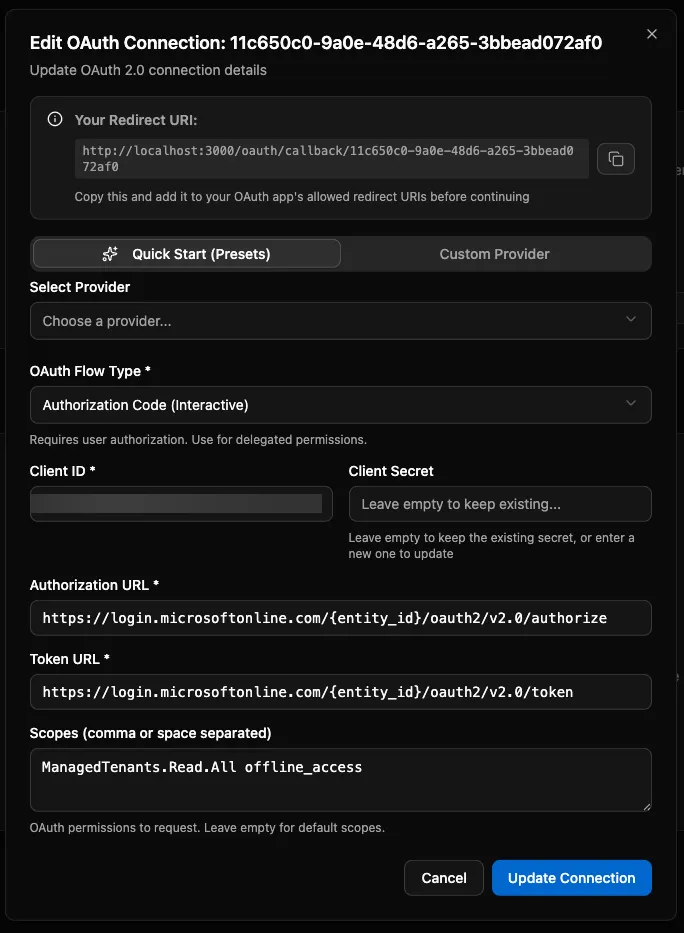

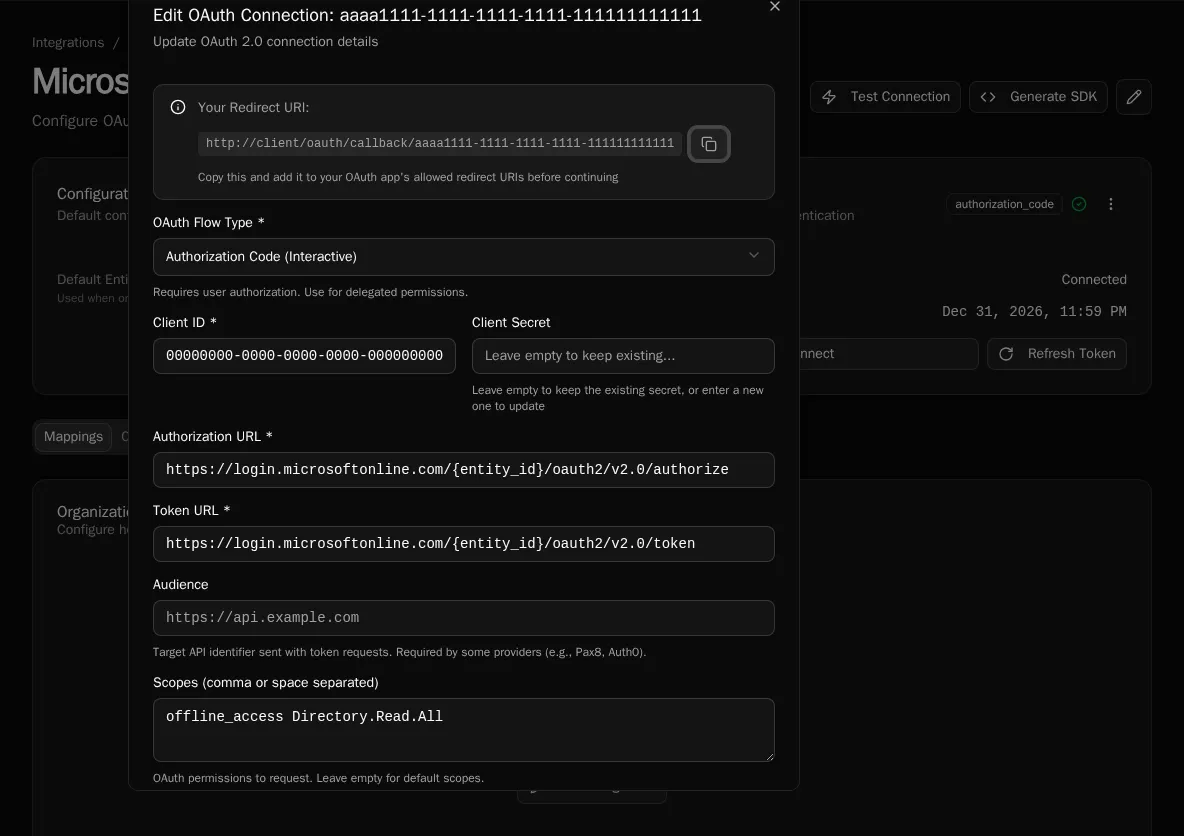

4. Configure OAuth:

   • OAuth Flow Type: Authorization Code (Interactive)

   • Client ID: The Client ID you copied earlier

   • Client Secret: The Client Secret you copied earlier

   • Authorization URL: The OAuth 2.0 authorization endpoint (v2)

     Our token and authorization URL incldue {entity_id} to demonstrate the templating engine. This will be replaced with common, but you can also just use common directly here and not specify a Default Entity ID.

   • Token URL: The OAuth 2.0 token endpoint (v2)

   • Scope: offline_access Directory.Read.All

   Tip

   offline_access requests a refresh token for continuous access without re-authentication.



5. Click Save

6. Copy the Redirect URI at the top and update your App Registration.

Authorize the Connection

1. Click Connect on your integration

2. Sign in with Microsoft and consent to permissions

3. You’ll be redirected back to Bifrost

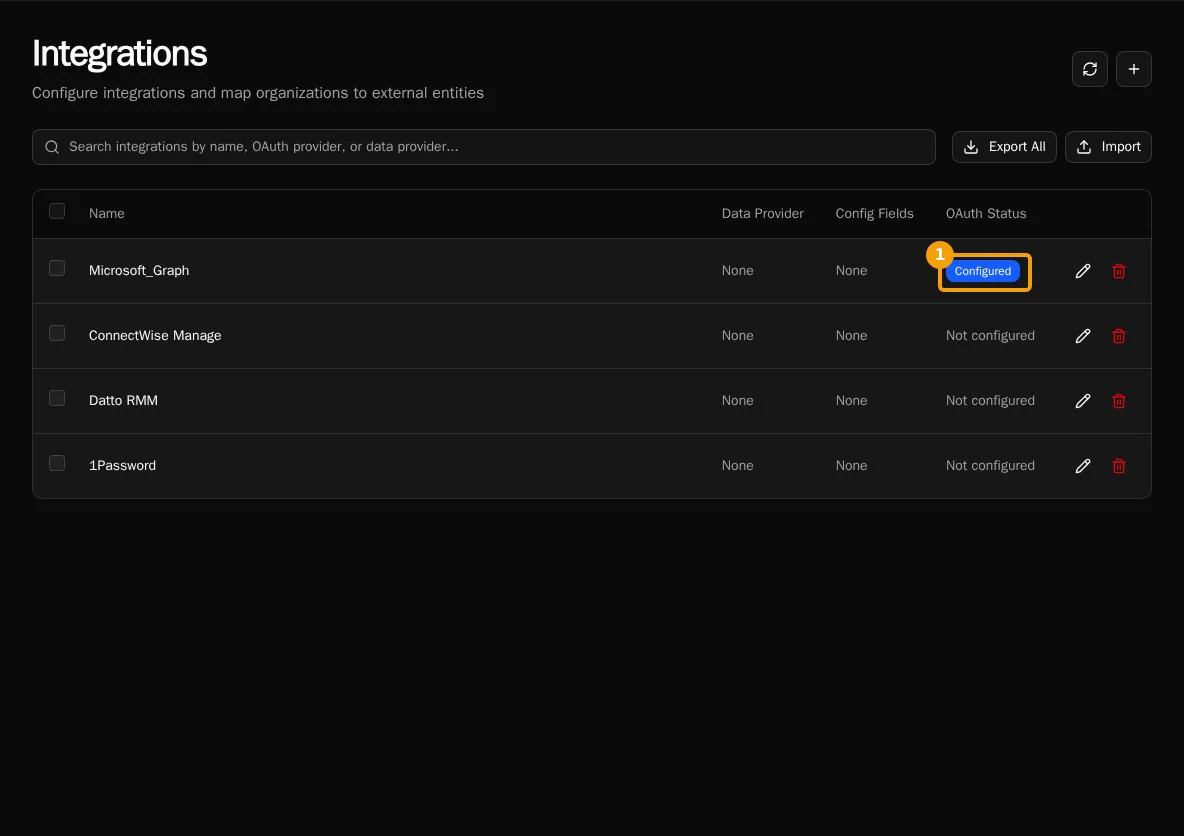

4. Connection status changes to Active



Use Integration in Workflow

1. In the Code Editor, create a new workflow called list_users.py

   from bifrost import workflow, integrations
   import httpx
   import logging

   logger = logging.getLogger(__name__)

   @workflow(
       name="list_users",
       description="List users from Microsoft Graph"
   )
   async def list_users():
       """Fetch user information from Microsoft Graph."""

       # Get integration with OAuth credentials
       integration = await integrations.get("Microsoft_Graph")
       if not integration or not integration.oauth:
           return {"error": "Microsoft Graph not configured"}

       logger.info("Retrieved Microsoft Graph integration")

       async with httpx.AsyncClient() as client:
           response = await client.get(
               "https://graph.microsoft.com/v1.0/users",
               headers={"Authorization": f"Bearer {integration.oauth.access_token}"}
           )
           response.raise_for_status()
           users = response.json()["value"]

       return users

2. Use CTRL/CMD + S to save.

3. On the Workflows screen, click Execute Workflow on your list_users workflow.

Token Refresh

Bifrost automatically refreshes expired tokens when your connection has a refresh token. If refresh fails (e.g., password changed), you’ll see the error on the Integrations screen.

Multiple Organizations

Integrations support per-organization OAuth tokens:

• Each org can have its own Microsoft Graph connection
• Workflows automatically use the executing org’s credentials
• Falls back to integration-level defaults if no org-specific token

# Automatically uses the right token for the current org
integration = await integrations.get("Microsoft_Graph")
token = integration.oauth.access_token

You can also specify the organization:

# Access a specific organization's integration
integration = await integrations.get("Microsoft_Graph", org_id="org-123")

# Access platform-level integration defaults (no org mapping)
integration = await integrations.get("Microsoft_Graph", scope="global")
